·         Thanks to its high efficiency, it is capable of operating in high ambient temperature environments and at a running distance of 45 meters without a balance chain.

·         With its high number of poles, it is dynamic and offers excellent controllability.

·         The starting current is minimal, and it provides constant torque across the entire speed range.

·         Low torque ripple ensures excellent driving comfort.

·         Thanks to its high efficiency, it operates trouble-free in environments with high ambient temperatures.

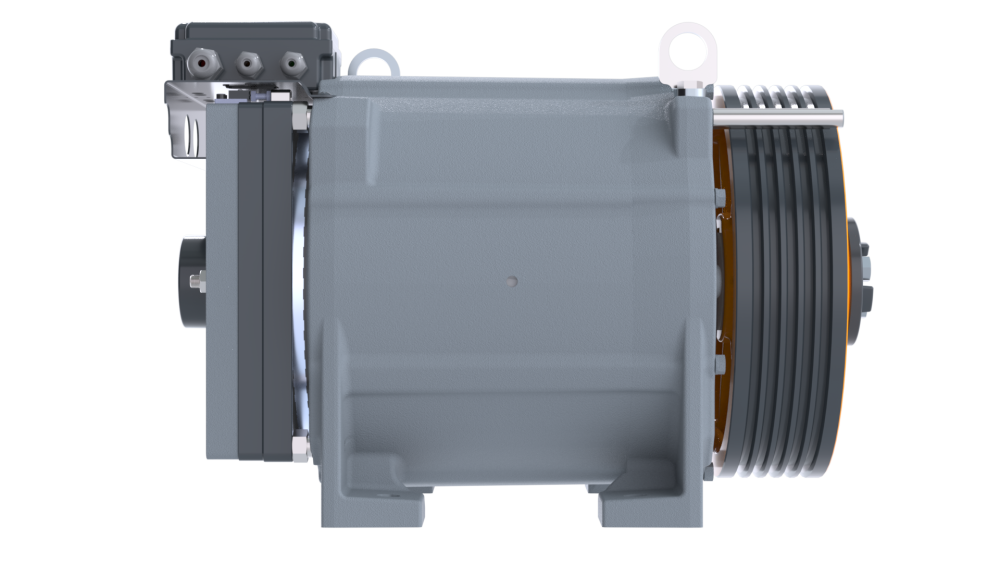

Synchronous motor

Maximum static load: 7000 kg

Operating voltage: 3-phase 360 V – 3-phase 220 V

Braking current: 2 × 0.50 A – 2 × 0.60 A – 2 × 1.00 A – 2 × 2.00 A – 2 × 2.50 A

Braking voltage: DC 220 V - DC 198 V - DC 110 V - DC 60 V - DC 48 V

Number of poles: 20

Protection class: IP54
