Thanks to its high efficiency, it is capable of operating in high ambient temperature environments and at a travel distance of 45 meters without a counterweight chain.

·         It is dynamic and offers excellent controllability due to its high number of poles.

·         The starting current is minimal, and it provides constant torque across the entire speed range.

·        Low torque ripple ensures excellent driving comfort.

·        Thanks to its high efficiency, it operates trouble-free in environments with high ambient temperatures.

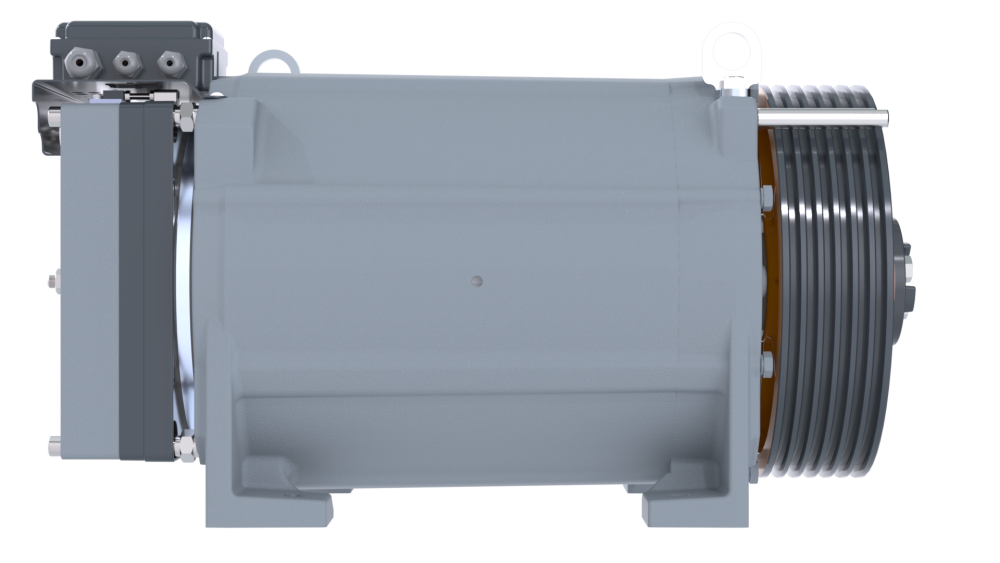

Synchronous motor

Maximum static load: 7,000 kg

Operating voltage: 3-phase 360 V – 3-phase 220 V

Braking current: 2 × 0.80 A – 2 × 0.85 A – 2 × 1.55 A – 2 × 2.80 A – 2 × 3.50 A

Braking voltage: DC 220 V – DC 198 V – DC 110 V – DC 60 V – DC 48 V

Number of poles: 20

Protection class: IP54
